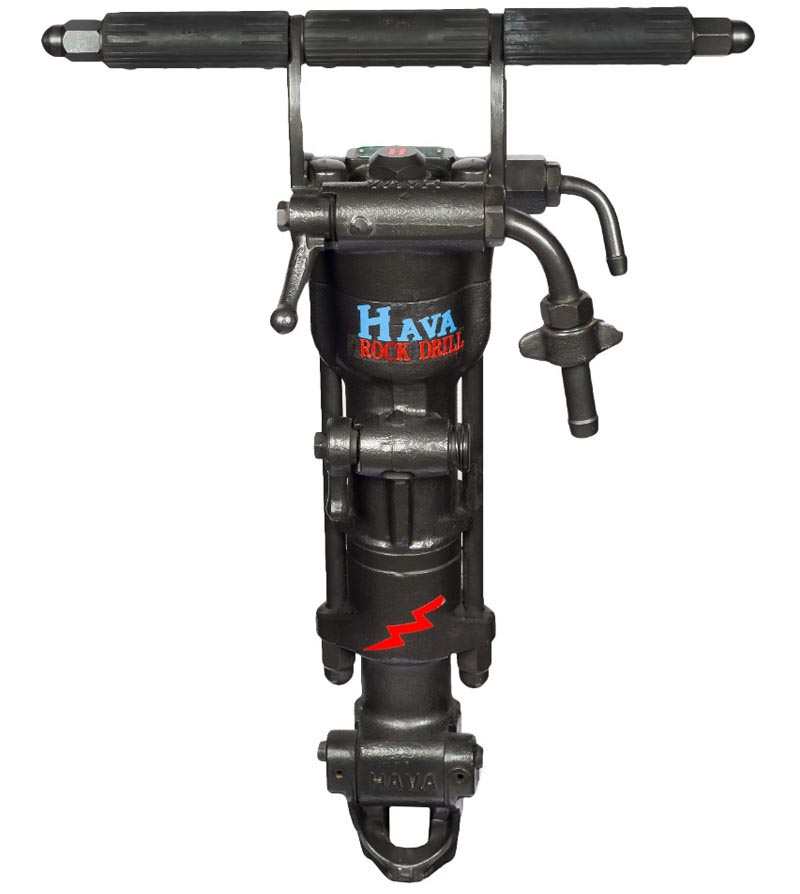

Hava Rock Drill - Wet
(RH-656/4W)

This water flushed model is used for horizontal or inclined in dustless drilling in conjuction with a pusher leg such as in underground mines and tunnels.

Applications:

  • In underground mines and tunnels
  • Horizontal / Inclined drilling

Product Features:

  • Rifle Bar Rotation
  • Kick Latch Retainer
  • Valve for Air Flushing
Technical Specifications
Model Weight Air Requirement Piston Piston Impact Drilling Hose Connection
  kg (at 6 bar) m3/Min (87 PSI) cfm Diameter MM Stroke mm Rate Blows/Min Rate MM/Min Air MM Water MM
WET 26 2.9 101 65 60 2050 410 19 12.7

*Drilling Rate of 33mm Drill bit at an air pressure of 6kg/cm2. Due to varying Rock conditions, actual results may be greater or less than those listed.
